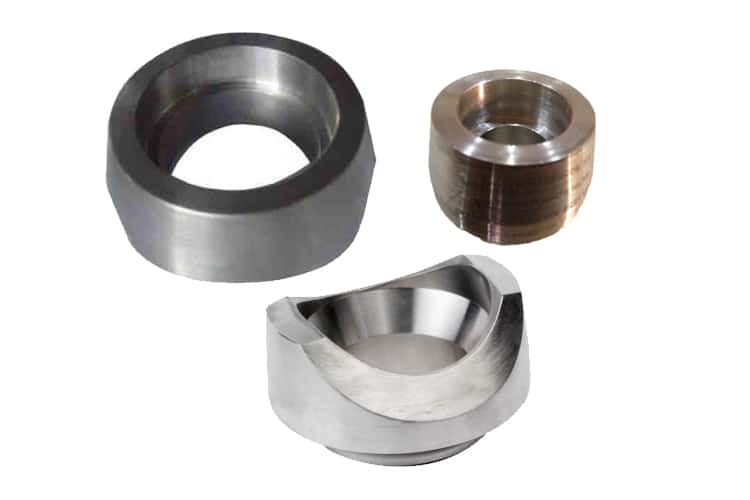

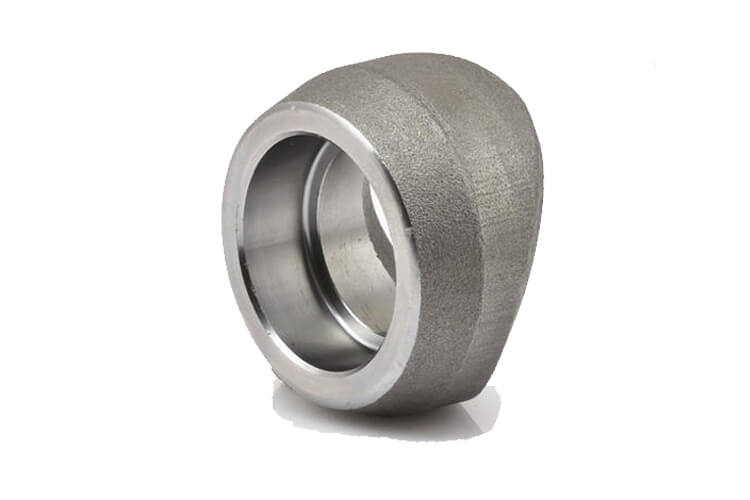

Socket weld Outlet
Socket weld Outlets Fittings
Socket welding Outlets Exporters, Brancholet Socket weld Outlet, Socket weld Branch Connection Fittings, Socket weld Pipe Outlets Suppliers in Mumbai, India.
Kencotube is skilled manufacturer & trader of Socket weld Outlet, which have great resistance towards heat and corrosion. Stainless Steel Socket weld Outlet have exceptionally high strength even at higher temperature and pressure applications. Carbon Steel Socket weld Outlet are used as permanent welded connection or detachable thread connection. These Alloy Steel Socket weld Outlet are designed and developed as per the various Indian and international quality standards. Alloy 20 Socket weld Outlet is safe and reliable to use and thanks to a great variety it has easy replacement of unequal tee, reinforcement pad and others. Monel Socket weld Outlet is traditionally used in branch connections, which has different kinds like standard, short, mitre or meter and elbow types. Inconel Socket weld Outlet can be connected to pipes, instruments and valves by means of butt or socket welding and thread connection.
ASTM A182 Stainless Steel Socket weld Outlet, ASTM A105 Carbon Steel Socket weld Outlet, Duplex Steel Socket weld Outlet, Super Duplex Steel Socket weld Outlet Exporters, Alloy Steel Socket weld Outlet Dealers, Copper Nickel Socket weld Outlet Stockists, High Quality Socket weld Outlet, Manufacturers and Suppliers of Socket weld Outlet Pipe Outlet Fittings in Various types of Material Grades.
Nickel Alloy Socket weld Outlet is used in countless applications, especially for high pressure, high temperature and also when large diameter and special wall thickness are required. Hastelloy Socket weld Outlet are offered in several technical specifications to suit diverse requirements of several industries. All types of Copper Nickel Socket weld Outlet are offered in different technical specifications to suit varied industrial applications, which are made up of with high quality steel. Owing to our rich industry experience, we have been successful in catering to the requirements of our esteemed patrons by offering Titanium Alloy Socket weld Outlet. Mechanical properties of Tantalum Socket weld Outlet vary with product form and temper. Meanwhile, these Tungsten Alloy Socket weld Outlet are made using premium-grade raw material in various sizes.
MSS-SP-97 Socket weld Outlet, Alloy 20 Socket weld Outlet, Inconel Alloy Socket weld Outlet, SS Socket weld Outlet, Austenitic Stainless Steel Socket weld Outlet, Incoloy Socket weld Outlet, Monel Alloy Socket weld Outlet, Brass Socket weld Outlet Dealers, Titanium Socket weld Outlet, High Nickel Alloy Socket weld Outlet Exporters, Hastelloy Socket weld Outlet Stockists and Stockholders.
Socket weld Outlet Specification
| Size | 1/2'' to 24'' |
| Class | 3000LBS, 6000LBS, 9000LBS |
| Thickness | SCH 5S,SCH 10S, SCH 40S, SCH 80S, SCH 120S |
Socket weld Outlet Material and Grades
Stainless Steel Socket weld Outlet : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex & Super Duplex Steel Socket weld Outlet : ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61. UNS No S31803, S32205, UNS No S32750, S32950
Carbon Steel Socket weld Outlet : ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70
Alloy Steel Socket weld Outlet : ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Nickel Alloy Socket weld Outlet : ASTM / ASME SB 564 /160 /472, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II).
Copper Alloy Socket weld Outlet : ASTM / ASME SB 61/62/151/152, UNS NO. C 92200, UNS NO. C 83600, UNS NO. UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200, Cupro Nickel 90/10 (C 70600), Cupro Nickel 70/30. (C 71500).
Low Temperature Carbon Steel (LTCS) Socket weld Outlet : A350 LF3/A350 LF2
Socket weld Outlet Dimensions Data
| Reducing Sizes | |||||||
| CL 3000 |
Outlet Size Inches |
Dimensions |
Appx. Wt Pounds |
||||
| A | B | C | D | E | |||
| 1/8 |
3/4
|
1
|
5/8
|
0.269
|
9/32
|
0.10
|
|
| 1/4 |
3/4
|
1
|
5/8
|
0.364
|
9/32
|
0.10
|
|
| 3/8 |
13/16
|
1 1/4
|
3/4
|
0.493
|
7/16
|
0.20
|
|
| 1/2 |
1
|
1 13/32
|
29/32
|
0.622
|
9/16
|
0.30
|
|
| 3/4 |
1 1/16
|
1 23/32
|
1 5/32
|
0.824
|
9/16
|
0.35
|
|
| 1 |
1 5/16
|
2
|
1 7/16
|
1.049
|
25/32
|
0.60
|
|
| 1 1/4 |
1 5/16
|
2 9/16
|
1 3/4
|
1.380
|
3/4
|
0.85
|
|
| 1 1/2 |
1 3/8
|
2 27/32
|
2
|
1.610
|
3/4
|
1.00
|
|
| 2 |
1 1/2
|
3 15/32
|
2 9/16
|
2.067
|
13/16
|
1.60
|
|
| 2 1/2 |
1 9/16
|
4 1/16
|
3
|
2.469
|
3/4
|
2.75
|
|
| 3 |
1 3/4
|
4 13/16
|
3 11/16
|
3.068
|
15/16
|
3.80
|
|
| 3 1/2 |
2 1/8
|
5 7/32
|
4
|
3.548
|
1
|
4.30
|
|
| 4 |
1 7/8
|
5 31/32
|
4 3/4
|
4.026
|
1 1/16
|
7.25
|
|
| 5 |
2 5/8
|
7 5/16
|
5 9/16
|
5.047
|
1 11/32
|
12.00
|
|
| 6 |
2 3/4
|
8 5/8
|
6 11/16
|
6.065
|
1 13/32
|
14.50
|
|
| CL 6000 | 1/2 |
1 1/4
|
1 23/32
|
3/4
|
0.466
|
7/8
|
0.50
|
| 3/4 |
1 7/16
|
1 61/64
|
1
|
0.614
|
7/8
|
0.80
|
|
| 1 |
1 9/16
|
2 7/16
|
1 5/16
|
0.815
|
15/16
|
1.30
|
|
| 1 1/4 |
1 5/8
|
2 23/32
|
1 1/2
|
1.160
|
13/16
|
1.60
|
|
| 1 1/2 |
1 11/16
|
3 1/4
|
1 15/16
|
1.338
|
7/8
|
2.00
|
|
| 2 |
2 1/16
|
4 1/32
|
2 3/4
|
1.689
|
1 3/16
|
5.15
|
|
| Size on Size | |||||||
| CL3000 | Outlet
Size Inches |
Dimensions | Appx. Wt in Pounds |
||||
| A | B | C | D | E | |||
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 | |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 | |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 | |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 | 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 | |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 | |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 | |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 | |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 | |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 | |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 | |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 | |
