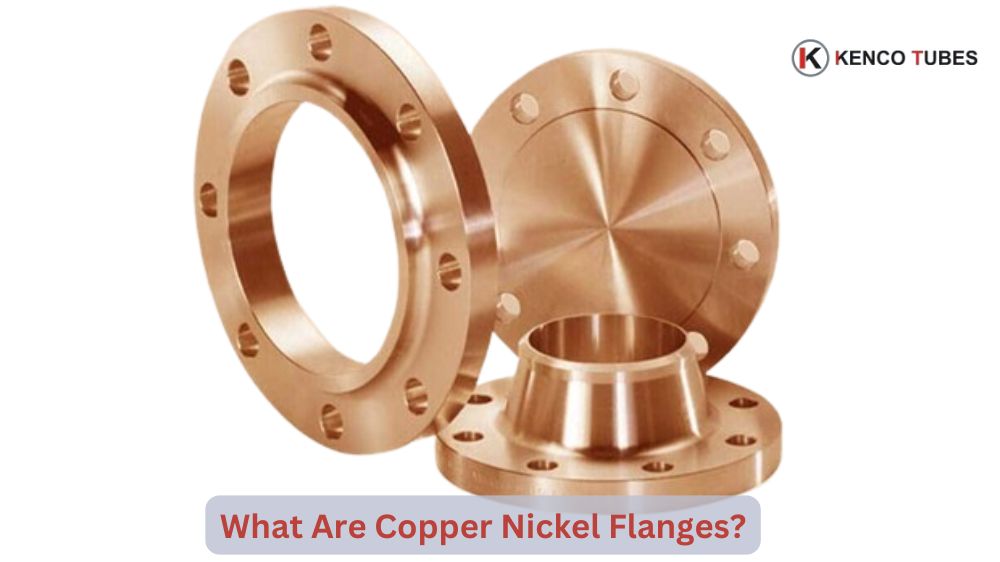

Copper Nickel flanges, commonly referred to as Cu-Ni flanges, are crucial components in various industrial applications and are known for their remarkable corrosion resistance, strength, and durability. These flanges are made from an alloy consisting primarily of copper (Cu) and nickel (Ni), with the addition of other elements like iron and manganese to enhance their properties.
Composition and Properties of Copper Nickel Flanges
Copper Nickel flanges typically contain 90% copper and 10% nickel or 70% copper and 30% nickel, depending on the specific alloy used. The inclusion of nickel significantly improves the corrosion resistance of the alloy, especially in marine environments. Iron and manganese are often added to increase the overall strength and resistance to erosion.
Key properties of Copper Nickel flanges include:
- Corrosion Resistance: They offer excellent resistance to corrosion, particularly in seawater, making them ideal for marine applications.
- Thermal Conductivity: Copper Nickel alloys maintain good thermal conductivity, which is essential for heat exchanger applications.
- Mechanical Strength: These flanges possess a good balance of ductility and toughness, allowing them to withstand high pressures and temperatures.
- Anti-fouling Properties: The material’s ability to resist the accumulation of marine organisms on its surface makes it ideal for marine use.
Types of Copper Nickel Flanges
Copper Nickel flanges come in various types to suit different applications:
- Weld Neck Flanges: Designed for high-pressure environments, these flanges are welded to the pipe and offer strong connections.
- Slip-On Flanges: These flanges are easier to install; they slip over the pipe and then are welded in place.
- Socket Weld Flanges: These are used for small-sized high-pressure pipes.
- Blind Flanges: Used to close the ends of piping systems or pressure vessel openings.
- Lap Joint Flanges: Ideal for systems requiring frequent disassembly.
Applications of Copper Nickel Flanges
Thanks to their unique properties, copper-nickel flanges are widely used in a variety of industries, particularly where corrosion resistance is critical. Some common applications include:
- Marine Industry: Copper Nickel flanges are extensively used in shipbuilding and offshore oil and gas platforms. Their ability to withstand seawater corrosion makes them perfect for seawater piping systems, heat exchangers, and condenser systems.
- Power Generation: In power plants, especially those near the coast, Copper Nickel flanges are used in cooling systems and other components exposed to seawater.
- Desalination Plants: These plants often use copper-nickel flanges in their piping systems to resist the corrosive nature of saltwater and brine.
- Chemical Industry: The chemical resistance of Copper Nickel flanges makes them suitable for use in various chemical processing applications where harsh chemicals are handled.
- Oil and Gas Industry: Copper Nickel flanges are utilized in offshore platforms, pipelines, and other equipment where resistance to both seawater and corrosive substances is required.
- Heat Exchangers: Since the material possesses high thermal conductivity, these Copper Nickel flanges widely used in heat exchange equipment and condensers.
Conclusion
Copper Nickel flanges are indispensable components in industries where corrosion resistance, mechanical strength, and durability are paramount. Their versatility and reliability make them a preferred choice in the marine, power generation, chemical, and oil and gas industries. Whether it’s a high-pressure piping system on an offshore platform or a seawater cooling system in a coastal power plant, Copper Nickel flanges ensure the longevity and efficiency of the system.
By understanding the properties and applications of copper-nickel flanges, industries can make informed decisions when selecting materials for their critical systems, ensuring safety, efficiency, and cost-effectiveness.
