Stainless Steel 321 Pipe and Tube
Stainless Steel 321 Tubing
What are Stainless Steel 321 Pipes?
Stainless Steel 321 Pipes are a common austenitic stainless steel alloy. It has excellent forming, welding, and phase stability properties. Because of its stability, the material is known for its resistance to intergranular corrosion. This makes it suitable for applications in intermittent service temperatures. SS 321 Seamless Pipes have a minimum tensile strength of 515 Mpa. The addition of titanium to the alloy boosts its strength. Alloy 321 is commonly used in engineering and chemical equipment. It has a maximum hardness of Rockwell 95 HRB. Aside from its machinability, the SS 321 Steel is resistant to atmospheric corrosion, inorganic chemicals, and chlorides. Stainless 321 is suitable for use in applications that involve high temperatures. SS 321 Pipe is preferred over stainless steel 304l pipe in the high-temperature range due to its better strength and formability. Moreover, it can be welded in place using standard shop fabrication procedures. Stainless 321 Pipe is also resistant to aqueous corrosion and subsequent aqueous corrosion. Usually, it is used in functions between 800 and 1650 Degrees C.
Aside from its machinability, the SS 321 Steel is resistant to atmospheric corrosion, inorganic chemicals, and chlorides. Stainless 321 is suitable for use in applications that involve high temperatures. SS 321 Pipe is a preferred choice in the high-temperature range over SS 304L Pipes due to its better strength and formability. Moreover, it can be welded in place using standard shop fabrication procedures. Stainless 321 Pipe is also resistant to aqueous corrosion and subsequent aqueous corrosion. Usually, it is used in functions between 800 and 1650 Degrees C.
What are Stainless Steel 321 Tubes?
Stainless Steel 321 Tubes are austenitic 18/8 stainless steel alloys stabilized with titanium. This addition to the alloy makes it more resistant to intergranular corrosion. It also helps to prevent carbide precipitation during welding. SS 321 is used in a wide variety of applications. In general, 321 tubing is a very tough and heat-resistant alloy ideal for high-temperature applications. Typical applications include high-pressure steam and boiler tubes, pressure vessels, and manifolds.
The material is also used in radiant superheaters, heavy-duty exhaust systems, and oil refinery equipment. Stainless 321 is also known for its resistance to atmospheric corrosion, sterilizing solutions, and various inorganic chemicals. SS 321 is often chosen for its resistance to carbide precipitation. While chromium carbide can form if exposed to temperatures over 900 degrees Fahrenheit, this process is less likely to occur with small-diameter SS 321 tubing. Aside from its excellent forming and welding properties, SS 321 Tubes are also very resistant to scaling and intergranular corrosion. In addition, they have a minimum tensile strength of 515 Mpa.
Tp 321 Stainless Steel Pipe, SS 321 Large Diameter Heavy Wall Pipes, Stainless Steel Pipe, High Temperature And Corrosive Stainless Steel 321 Pipes, SS 321 Seamless Pipe, Astm A321 Stainless Welded Steel Pipe Exporter, Asme Sa312 Tp321 Seamless Stainless Steel Pipe, High Quality 321 SS Pipe Price, 321 Stainless Steel Seamless Pipe Suppliers, Astm 321 Stainless Steel Pipe Price, Cheap 321 Stainless Steel Pipe, Cheap 321 SS Pipe, 321 Stainless Steel Fabricated Pipes Dealers, SS 321 Efw Pipes, SS Grade 321 Welded Erw Pipes Exporters, Austenitic Stainless Steel 321 Pipes, 321 Stainless Steel Piping, SS 321 Polished Pipe, Uns S32100 Pipe, Din 1.4541 Pipe Stockists.
The 321 alloy is a commonly used austenitic stainless steel, which offers improved corrosion resistance. It is a chromium-nickel alloy that can be welded and fabricated in various forms. In addition to its rust resistance, the material is also resistant to various inorganic chemicals. AISI 321 stainless steel tubes are ideal for applications that require a high degree of ductility. This type of alloy is commonly used in heavy welded equipment that operates at temperatures between 800 and 1500 degrees F.
Kenco tube is among the top manufacturers and dealers of SS 321 Pipes and tubes, which are used because they are not sensitive to intergranular corrosion after heating within the carbide precipitation range of 425-850 Degrees C. Stainless Steel 321 Tubes are used for functions in the temp range of approximately 900 Degrees C, uniting soaring potency, phase stability and resistance to scaling using resistance to succeeding aqueous corrosion. Like other austenitic grades, Alloy 321 Pipes Tubes have excellent forming and welding characteristics, are readily brake or roll formed, and have outstanding welding characteristics.
Post-weld annealing is not required, whereas 321 Stainless Steel Tubes is heat resistant, titanium stabilized, austenitic alloy commonly used for service in the 1000 Degree F – 1600 Degree F temperature range. Grade 321 Pipes Tubes is primarily used in applications that involve continuous and intermittent service temperatures within the carbide precipitation range of 800 Degree -1500 Degree F. Stainless Steel 321 Seamless Pipes is similar to SS 304 but with a titanium addition of at least five times the carbon content. This titanium addition in b Stainless Steel 321 Welded Pipes reduces or prevents carbide precipitation during welding. We also offer these products in different sizes and shapes per client’s requirements.
Asme Sa 213 Tp 321 Stainless Steel Tubes, SS 321 Coiled Tubes, Stainless Steel 321 Hydraulic Tubes, 321 Stainless Steel Seamless Pipe, Cheap 304 321 316l 310s Stainless Steel Pipe Price, High Quality 321 SS Pipe Factories, Astm A312 Tp 321 Welded Pipe, High Quality 321 SS Pipe, SS 321 Seamless Tubing, Stainless Steel 321 Welded Erw Tubes, Uns S32100 Tube, Din 1.4541 Tube, 321 SS Capillary Tubing Traders, Stainless Steel Tube, Stainless Steel 321 Instrumentation Tube Distributors, SS 321 Precision Tubes, Stainless Steel 321 Electro Polish Tube, 321 SS Boiler Tubes Stockholders, SS 321 Tubing Suppliers.
The basic austenitic 18/8 steel (Grade 304) is stabilised by additions of Titanium (321) or Niobium (347). These grades are used because, when heated within the carbide precipitation range of 425-850 °C, they are not prone to intergranular corrosion.
312 pipe is a general purpose stainless steel pipe that is used in a variety of industries. It accommodates diameters ranging from 1/8" to 30" and thicknesses ranging from SCH 10S to SCH 80S.
Specifications of ASTM A312-A213-A249-TP-321 SS Pipes and Tubes
| Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
| Size | Seamless 321 Pipes and Tubes - 1/2" NB - 16" NB |
| ERW 321 Pipes and Tubes | 1/2" NB - 24" NB |
| EFW 321 Pipes and Tubes | 6" NB - 100" NB |
| Wall Thickness | Schedule 5S - Schedule XXS. |
| Dimensions | ASTM, ASME and API |
| Schedule | SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Length | Single Random, Double Random & Cut Length. |
| Form | Round, Square, Rectangular, Hydraulic Etc. |
AISI 321 Equivalent Material
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | EN | EURONORM |
|---|---|---|---|---|---|---|
| SS 321 | 1.4541 | S32100 | SUS 321 | 321S31 | 58B, 58C | X6CrNiTi18-10 |
SS 321 Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SS 21 | Min | - | - | - | - | - | 17.0 | - | 9.0 | - | Ti=5(C+N) |
| Max | 0.08 | 2.00 | 0.75 | 0.045 | 0.030 | 19.0 | 12.0 | - | 0.10 | 0.70 |
321 Stainless Steel Machinability
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Rockwell B (HR B) max (Hardness) | Brinell (HB) max (Hardness) |
|---|---|---|---|---|---|
| 321 | 515 | 205 | 40 | 95 | 217 |
321 Stainless Steel Machinability Price list
| Size | OD | WT | FOB Price | |
|---|---|---|---|---|
| (mm) | (mm) | (usd/ton) | ||
| 1" | SCH 40 | 33.4 | 3.38 | $665 |
| 2" | SCH 40 | 60.3 | 3.91 | $634 |
| 2-1/2" | SCH 40 | 73 | 5.16 | $626 |
| 3" | SCH 40 | 88.9 | 5.49 | $621 |
| 4" | SCH 40 | 114.3 | 6.02 | $612 |
| 6" | SCH 40 | 168.3 | 7.11 | $612 |
| 8" | SCH 40 | 219.1 | 8.18 | $612 |
| 10" | SCH 40 | 273 | 9.27 | $599 |
321 Stainless Steel Machinability Stock
|
Outside Diamter, OD (in mm) |
Wall Thickness, WT (in mm) |
|---|---|
|
6mm – 630mm |
0.5mm-30mm |
|
12.7mm* 12.7mm to 300mm* 300mm |
0.5mm-30mm |
|
10*20mm to 100*200mm |
0.5mm-30mm |
|
6mm to 630mm |
0.5mm-30mm |
|
12.7mm to 250mm |
0.5mm-30mm |
|
16mm to 85mm |
0.5mm-3.0mm |
|
13mm to 85mm |
0.5mm-2.0mm |
|
20mm to 200mm |
0.5mm-2.0mm |
|
22mm*0.7mm to 108mm*2.0mm |
0.5mm-2.0mm |
|
12.5mm to 203.2mm |
1.0mm – 5mm |
|
0.28mm to 10mm |
0.08mm – 1.2mm |
|
6mm to 430mm |
0.8mm – 30mm |
321 Stainless Steel Machinability pressure rating
| Pipe Size (inches) |
Pipe Schedule | Temperature (°F) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
| 1" | 40 | 3048 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 |
| 1" | 80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 |
| 1" | 160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 |
| 1.5" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
| 1.5" | 80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 |
| 1.5" | 160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 |
| 2" | 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 |
| 2" | 80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 |
| 2" | 160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 |
| 3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
| 3" | 80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 |
| 3" | 160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2304 | 2280 |
| 4" | 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 |
| 4" | 80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 |
| 4" | 160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 |
| 5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
| 5" | 80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 |
| 5" | 160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 |
| 6" | 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 |
| 6" | 80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 |
| 6" | 160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 |
| 8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
| 8" | 80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 |
| 8" | 160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 |
| 10" | 40 | 974 | 840 | 755 | 694 | 945 | 615 | 596 | 584 | 578 |
| 10" | 80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 |
| 10" | 160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 |
321 Stainless Steel Machinability Physical
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
321 Stainless Steel Machinability Application
- Trailers
- Heat Exchangers
- Food processing equipment
- Kitchen benches, sinks, troughs, equipment and appliances
- construction materials
- Threaded fasteners
- Chemical containers, including for transport
- Automotive trim
- Architectural applications
- Railway cars
- Woven or welded screens for mining, quarrying & water filtration
People Also Search Stainless Steel 321 Pipe and Tube
seamless stainless pipe, seamless stainless tubing, 321 bright anneal seamless pipe suppliers, astm a321 stainless welded steel pipe manufacturers, 321 stainless steel pipe manufacturers, astm a321 stainless welded steel pipe, astm a321 stainless welded steel pipe exporter, asme sa312 tp321 seamless stainless steel pipe, high quality 321 ss pipe price, 321 stainless steel seamless pipe suppliers, astm 321 stainless steel pipe price, cheap 321 stainless steel pipe, cheap 321 ss pipe, 321 stainless steel seamless pipe, cheap 304 321 316l 310s stainless steel pipe price, high quality 321 ss pipe factories, astm a312 tp 321 welded pipe, high quality 321 ss pipe
Our City-wise Supply :
Sydney, Bangkok, Calgary, Courbevoie, Cairo, Melbourne, Dubai, Riyadh, Hanoi, Ludhiana, Gimhae-si, Jeddah, Kuwait City, Haryana, Gurgaon, Secunderabad, Chandigarh, Madrid, Manama, Seoul, Karachi, Vung Tau, Lagos, Al Jubail, Indore, London, Algiers, Pimpri-Chinchwad, New York, Atyrau, Moscow, Bengaluru, Tehran, Chiyoda, Howrah, Kanpur, Chennai, Baroda, Ahmedabad, Mumbai, Ulsan, Ahvaz, Ranchi, Kuala Lumpur, Vadodara, Al Khobar, Kolkata, Edmonton, Nashik, Caracas, Dallas, Pune, Dammam, Milan, Colombo, Bhopal, Geoje-si, Rajkot, Petaling Jaya, La Victoria, Hyderabad, Granada, Busan, Noida, Toronto, Jakarta, Thane, Surat, Coimbatore, Navi Mumbai, Sharjah, Jamshedpur, Ankara, Santiago, Hong Kong, Singapore, Lahore, Visakhapatnam, Brisbane, Jaipur, Montreal, Faridabad, Thiruvananthapuram, Aberdeen, Doha, Houston, Rio de Janeiro, Port-of-Spain, Bogota, Perth, Istanbul, Los Angeles, Mexico City, Ernakulam, Nagpur, New Delhi.
Our International Supply chain :
Spain, Pakistan, Iraq, Trinidad & Tobago,Tunisia, Estonia, Namibia, Czech Republic, New Zealand, Canada, Japan, Bhutan, Denmark, Mexico, Lithuania, Belarus, India, Taiwan, Norway, Chile, Vietnam, Greece, Sweden, Malaysia, Costa Rica, Australia, Venezuela, Brazil, Argentina, Croatia, Azerbaijan, Kazakhstan, Ghana, Serbia, Egypt, Netherlands, Ireland, United Arab Emirates, Libya, Switzerland, Iran, Jordan, Poland, Tibet, Chile, Philippines, Italy, Kuwait, Poland, Afghanistan, Algeria, Turkey, Ecuador, Finland, Israel, Colombia, China, Hungary, Puerto Rico, South Korea, Iran, Macau, Saudi Arabia, Qatar, South Africa, United Kingdom, Romania, Kenya, United States, Indonesia, Bulgaria, Nigeria, Bolivia, Nigeria, Oman, Zimbabwe, Sri Lanka, Lebanon, France, Yemen, Slovakia, Singapore, Gabon, Austria, Bangladesh, Mongolia, Germany, Ukraine, Portugal, Bahrain, Nepal, Gambia, Morocco, Angola, Belgium, Thailand, Russia, Mexico, Peru, Hong Kong.
Pipes and Tubes

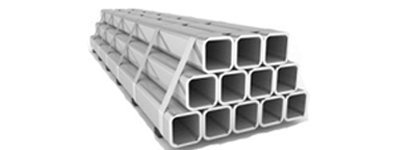

SS 321 Square Pipe
